Food and beverage conveying line transitional bottle transfer machine

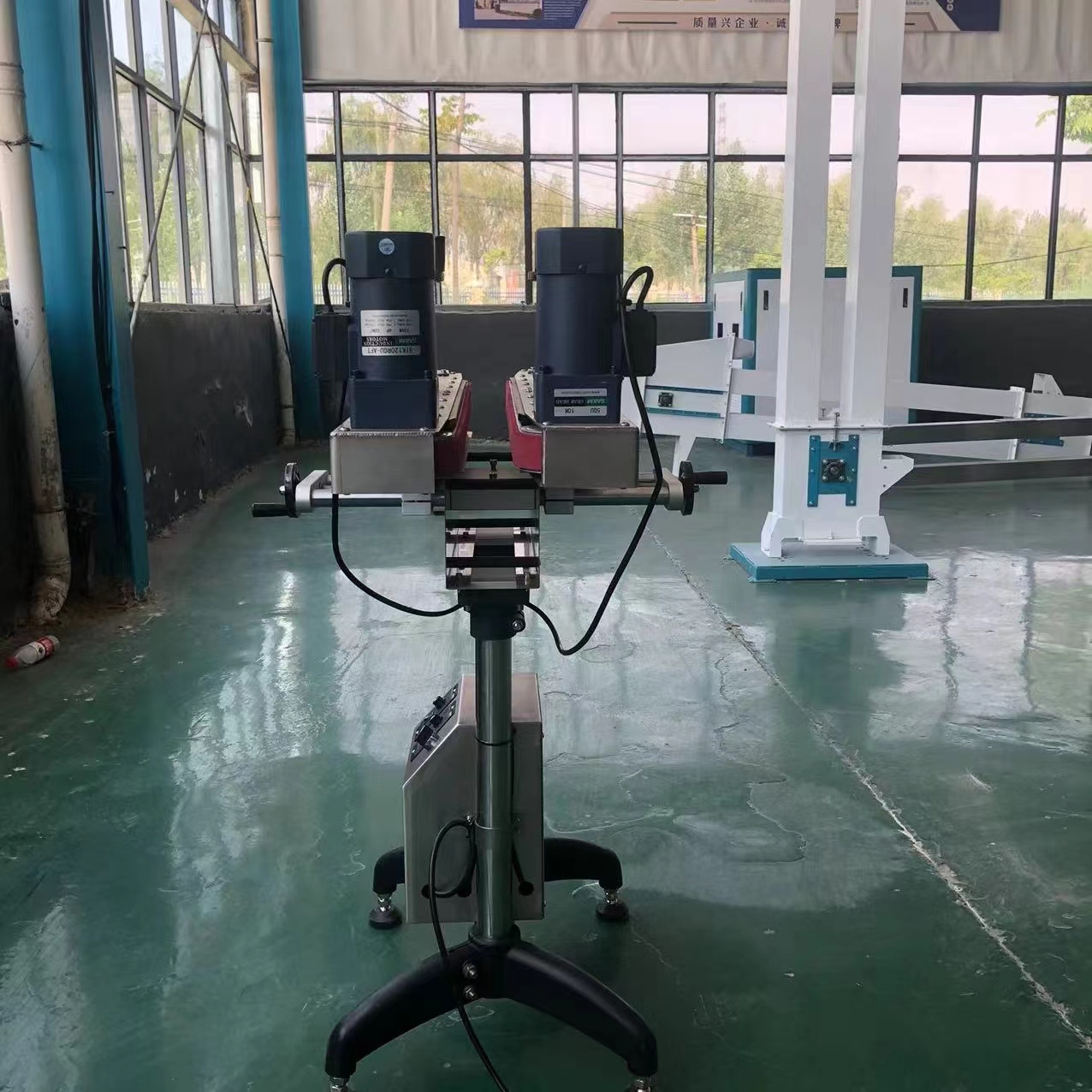

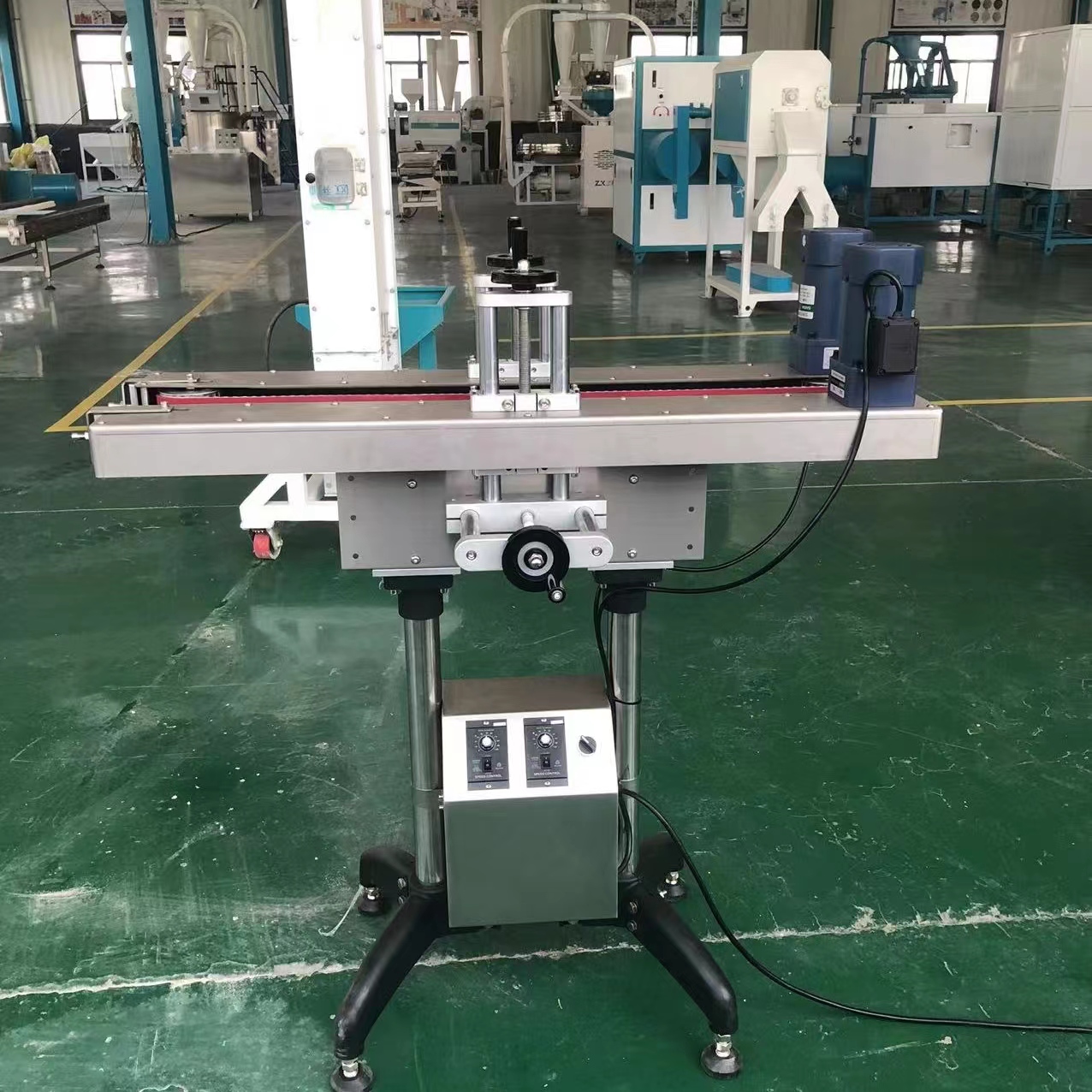

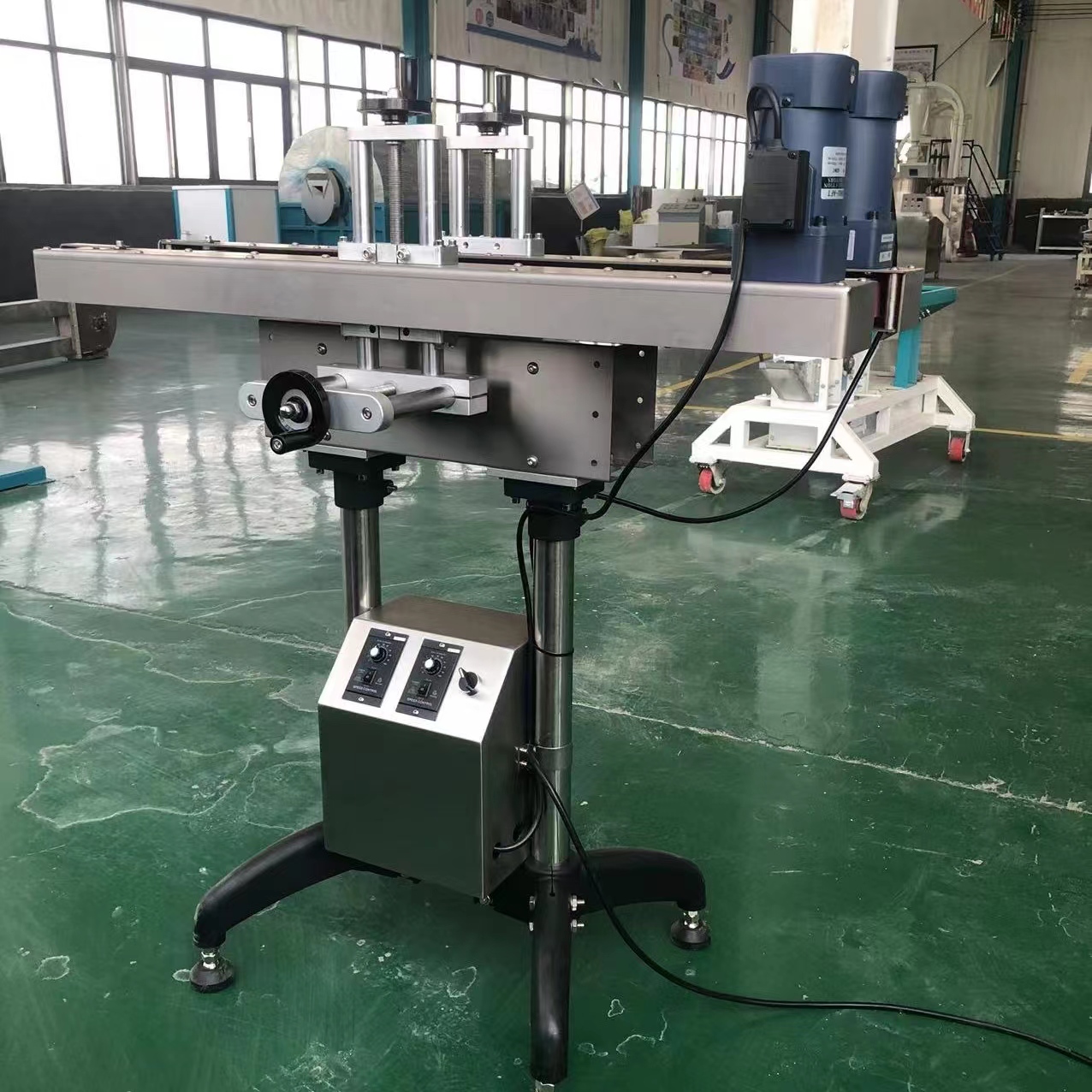

Bottomless conveyor：
Advantage
Industry:
Food and beverage industry, cosmetics industry, chemical industry. Others industries Etc
Side clamp bottle conveyor ，Bottom print logo，corrosion resistance, precision structure, smooth operation characteristics, is an indispensable equipment for Beverage production line.
1. Suitable for various bottle types
2. The conveying surface stable operation
3. Simple structure, easy maintenance, long life
4. It can achieve long-term, precise and stable safe transportation and high-quality and high-efficiency production work, reducing labor costs
Standard Product parameter：
Conveyor Length | 450mm、700mm、1000mm | |
Conveyor Width | 500mm | |
Conveyor Height | 800 mm(Adjustable by 100mm) | |
Frame material | Stainless steel | |
Belt Material | PVC 2mm | |
Conveyor belt width | 30mm/50mm | |
Bottle clamping width | 15-175mm | |
Voltage power | 220V 50Hz | |
Motor | 60 W*Two sets | |
Conveying speed | 25meters/minute(With reducer) |
Specifications can be customized according to requirements

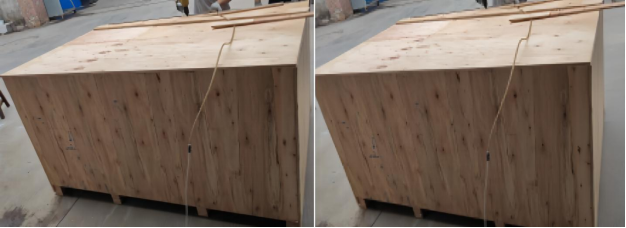

Packaging section：
1000mm Package | L115* W69 * H132 CM Weight 101.5 KG, Quantity 1 piece | |
700 mm Package | L80 *W64 *H115 CM Weight 76.5 KG, Quantity 1 piece |
